Specification

With steel nail, head u00d8 60 mm. For attaching external composite thermal insulation systems.

Secure grip, even in difficult substrates thanks to long expansion zone
Patented hinge joint area for flush-mounted insertion

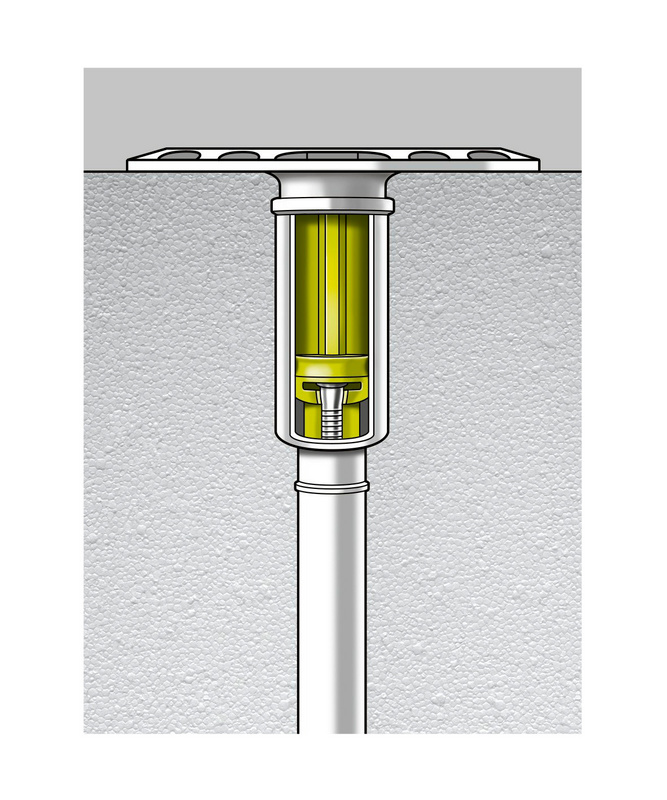

No thermal loss, steel nail protected against corrosion by special head seal
Higher static loads thanks to special nail with profiling
Pre-assembled u2013 easy installation
Head surface allows mortar to grip and can be used as a plaster base
3-part expansion zone for extra safety in many anchoring bases

Notice

Indicated insulation thickness includes a tolerance of 10 mm (e.g. for insulation adhesive). An existing layer of plaster may result in a reduced maximum insulation thickness in old buildings. The specific construction conditions should therefore always be taken into consideration.

Application

Multiple attachment with approval

Attachment of bonded external composite thermal insulation systems in concrete, solid and perforated brick.

The respective WDVS approval must be considered in all cases

Multiple attachment without approval

Insulating material attachment in natural stone with dense microstructure and aerated concrete

To attach soft insulating materials, the anchor can be combined with insulating plate W-DD-B (included in the approval)

Technical information

Anchor diameter	8 mm
Anchor length (l)	260 mm
Insulating-material thickness	220 mm
Disc diameter	60 mm
Material	Polypropylene - PP
Material of the nail	Steel
Colour	Green

Additional accessory:

Art.-no.: 5921301090

Insulation disc W-DD-B

DWL-PLA-(W-DD-B)-D90MM

For increasing the head size of insulation anchor W-DD-N and TSD-V KN

Art.-no.: 5921301110

Insulation disc W-DD-B

DWL-PLA-(W-DD-B)-D110MM

For increasing the head size of insulation anchor W-DD-N and TSD-V KN

Art.-no.: 5921301140

Insulation disc W-DD-B

DWL-PLA-(W-DD-B)-D140MM

For increasing the head size of insulation anchor W-DD-N and TSD-V KN
