Home Anchor technology Chemical mounting systems Accessories, chemical mounting systems Anchor rod W-VD-A Anchor rod W-VD-A/HCR

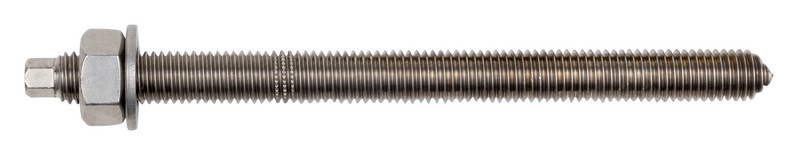

Anchor rod W-VD-A/HCR

Log in to see price

+374(0)10 349347, 349348

Read Product Description

Tecnical Description

  • Material: High corrosion-resistant steel, 1.4529
  • Screwing-property class: 70

Metric anchor diameter

Attachment height (t fix)

Anchor length (l)

Effective anchoring depth (h ef)

Code

Package / Quantity

Price (AMD)

M8

20 mm

110 mm

80 mm

5916408110

x 0
Request product

Code: 5916408110

Product information

Catalogue page as PDF 1, 2, 3, 4

Tecnical Description

  • Metric anchor diameter M8
  • Attachment height (t fix) 20 mm
  • Anchor length (l) 110 mm
  • Effective anchoring depth (h ef) 80 mm
  • Screwing-property class 70
  • Material High corrosion-resistant steel, 1.4529
Click here for more details

M10

30 mm

130 mm

90 mm

5916410130

x 0
Request product

Code: 5916410130

Product information

Catalogue page as PDF 1, 2, 3, 4

Tecnical Description

  • Metric anchor diameter M10
  • Attachment height (t fix) 30 mm
  • Anchor length (l) 130 mm
  • Effective anchoring depth (h ef) 90 mm
  • Screwing-property class 70
  • Material High corrosion-resistant steel, 1.4529
Click here for more details

M12

35 mm

160 mm

110 mm

5916412160

x 0
Request product

Code: 5916412160

Product information

Catalogue page as PDF 1, 2, 3, 4

Tecnical Description

  • Metric anchor diameter M12
  • Attachment height (t fix) 35 mm
  • Anchor length (l) 160 mm
  • Effective anchoring depth (h ef) 110 mm
  • Screwing-property class 70
  • Material High corrosion-resistant steel, 1.4529
Click here for more details

M16

45 mm

190 mm

125 mm

5916416190

x 0
Request product

Code: 5916416190

Product information

Catalogue page as PDF 1, 2, 3, 4

Tecnical Description

  • Metric anchor diameter M16
  • Attachment height (t fix) 45 mm
  • Anchor length (l) 190 mm
  • Effective anchoring depth (h ef) 125 mm
  • Screwing-property class 70
  • Material High corrosion-resistant steel, 1.4529
Click here for more details
Description Application
Specification
  • High load-bearing capacities, small centre to centre and edge distances
  • Cured composite mortar provides best possible seal for drill hole
  • Attachment with low expansion pressure allows minimal edge and centre to centre distances
  • Anchorage via bond between mortar, anchor rod and anchoring base.
Notice

Drill hole cleaning: Clean the drill hole: 1x blow-out, 1x brush-out, 1x blow-out, 1x brush-out

Installation instructions: Insert anchor rod using hammer drill or impact drill in rotation + impact mode.
