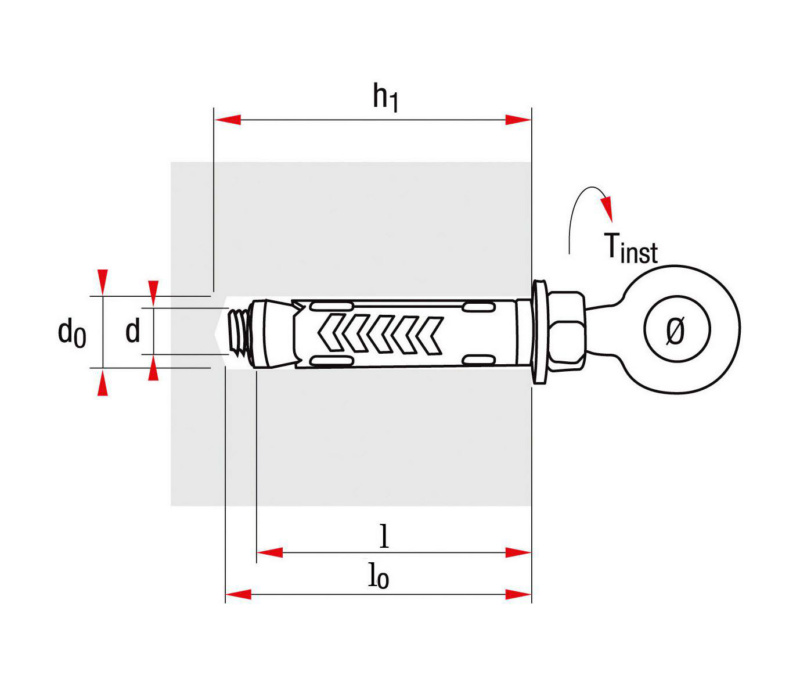

Anchor diameter

10 mm

Anchor length (l)

60 mm

Effective anchoring depth (h ef)

51.5 mm

Nominal drill-bit diameter (d 0)

14 mm

Min. centre-to-centre distance (s min)

135 mm

Min. edge clearance (c min)

85 mm

Minimum component thickness (h min)

140 mm

Drill hole depth (h 1)

70 mm

Through-hole in the component to be connected (d f)

12 mm

Torque during anchoring (T inst)

20 Nm

Drill cutting diameter (d cut)

14.5 mm

Centre-to-centre distance (s cr, N)

155 mm

Edge clearance (c cr, N)

78 mm

Screw length

73 mm

Version

With eyelet
