Anchor technology Heavy-duty fixings Metal dowel, cracked concrete Fixing bolt anchor screw with washer

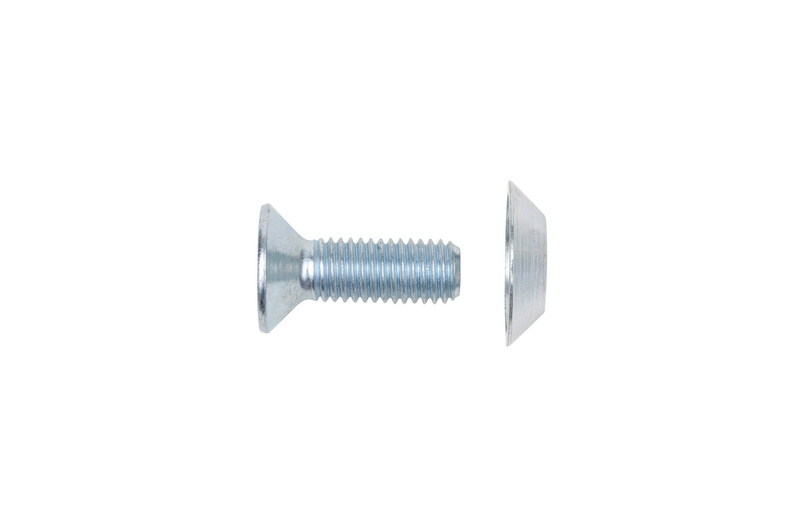

Countersunk screw, type SK/S — cotter-pin installation
Countersunk screw, type SK/S — cotter-pin installation
+374(0) 60 708807, +374(0) 10 349347
Tecnical Description
- Material: Steel
- Surface: Galvanised
Anchor diameter
Min./max. attachment height for cotter-pin mounting (t fix)
Countersink diameter
Countersinking depth
Code
Package / Quantity
Price (AMD)
Code: 0904706130
Tecnical Description
- Anchor diameter 6 mm
- Min./max. attachment height for cotter-pin mounting (t fix) 6-14 mm
- Countersink diameter 17.3 mm
- Countersinking depth 3.9 mm
- Material Steel
- Surface Galvanised
Code: 0904708130
Tecnical Description
- Anchor diameter 8 mm
- Min./max. attachment height for cotter-pin mounting (t fix) 9-15 mm
- Countersink diameter 21.5 mm
- Countersinking depth 5 mm
- Material Steel
- Surface Galvanised
Code: 0904710130
Tecnical Description
- Anchor diameter 10 mm
- Min./max. attachment height for cotter-pin mounting (t fix) 8-11 mm
- Countersink diameter 25.9 mm
- Countersinking depth 5.7 mm
- Material Steel
- Surface Galvanised
Code: 0904712130
Tecnical Description
- Anchor diameter 12 mm
- Min./max. attachment height for cotter-pin mounting (t fix) 9-14 mm
- Countersink diameter 30.9 mm
- Countersinking depth 6.7 mm
- Material Steel
- Surface Galvanised
Hexagon screws, countersunk screws, washers, countersunk washers and nuts have a special coating and are only permissible in the anchor system in accordance with ETA-99/0011.
