Anchor technology Frame fixing systems Plastic frame anchor Frame anchor, plstc, sld + prfrtd brick

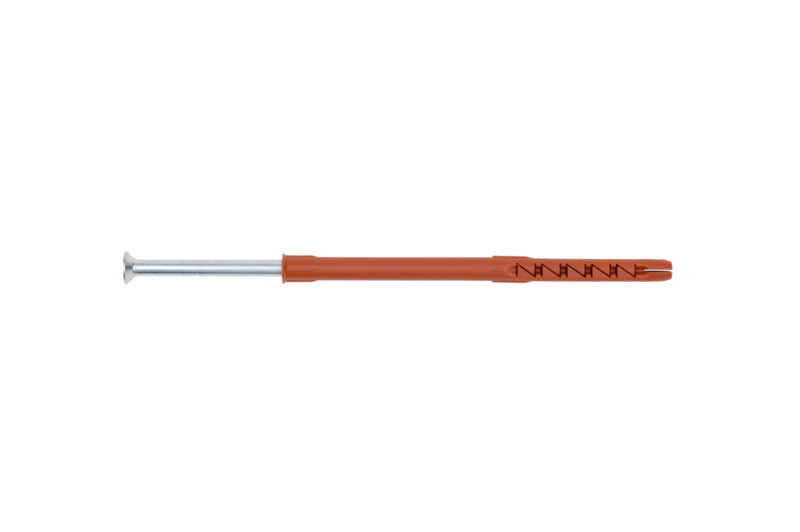

Plastic frame anchor W-UR 10, galvanised steel
Plastic frame anchor W-UR 10, galvanised steel
+374(0) 60 708807, +374(0) 10 349347
Tecnical Description
- Anchor diameter: 10 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Embedding depth (h nom): 70 mm
- Drill hole depth (h 1): 80 mm
Anchor length (l)
Max. attachment height (t fix)
Anchor diameter
Embedding depth (h nom)
Code
Package / Quantity
Price (AMD)
Code: 0912810402
Tecnical Description
- Anchor length (l) 100 mm
- Max. attachment height (t fix) 30 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810403
Tecnical Description
- Anchor length (l) 115 mm
- Max. attachment height (t fix) 45 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810405
Tecnical Description
- Anchor length (l) 160 mm
- Max. attachment height (t fix) 90 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810404
Tecnical Description
- Anchor length (l) 135 mm
- Max. attachment height (t fix) 65 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810406
Tecnical Description
- Anchor length (l) 185 mm
- Max. attachment height (t fix) 115 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810407
Tecnical Description
- Anchor length (l) 200 mm
- Max. attachment height (t fix) 130 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810408
Tecnical Description
- Anchor length (l) 230 mm
- Max. attachment height (t fix) 160 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810401
Tecnical Description
- Anchor length (l) 80 mm
- Max. attachment height (t fix) 10 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810409
Tecnical Description
- Anchor length (l) 260 mm
- Max. attachment height (t fix) 190 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810410
Tecnical Description
- Anchor length (l) 290 mm
- Max. attachment height (t fix) 220 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Code: 0912810411
Tecnical Description
- Anchor length (l) 320 mm
- Max. attachment height (t fix) 250 mm
- Anchor diameter 10 mm
- Embedding depth (h nom) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1) 80 mm
Anchorage via friction locking between wall plug body and anchoring base
Wall plug body made of high-quality polyamide

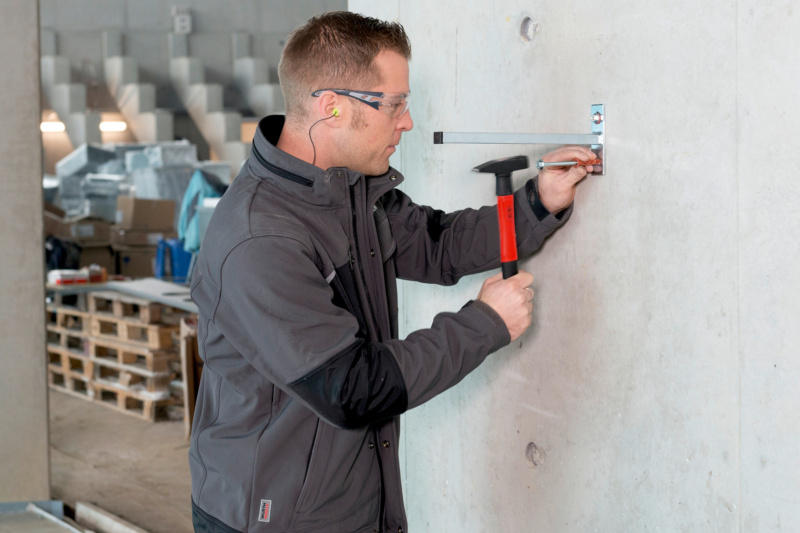

Push-through installation
Immediate load-bearing capacity u2014 no waiting
Virtually no movement of the wall plug body
- Low screw-in torque of the plug screw
- "Slight" spreading of the anchor
Very strong twist lock
High load-bearing capacities
Expansion in four directions
Improved load transfer
Even, continuous load distribution across the entire expansion area
The hammer-in stop prevents premature expansion of the anchor during installation
Low assembly workload
Pre-assembled wall plug body and special screw
Improved load transfer in solid and hollow construction materials
- Drill perforated and hollow blocks with a rotary drill (without impact mechanism)
- For anchoring in solid brick and solid sand-lime brick, we recommend that you perform pull-out tests due to the differences in brick manufacturing.
- Drill cuttings must be removed from the drill hole
