Anchor technology Frame fixing systems Plastic frame anchor Frame anchor, plstc, sld + prfrtd brick

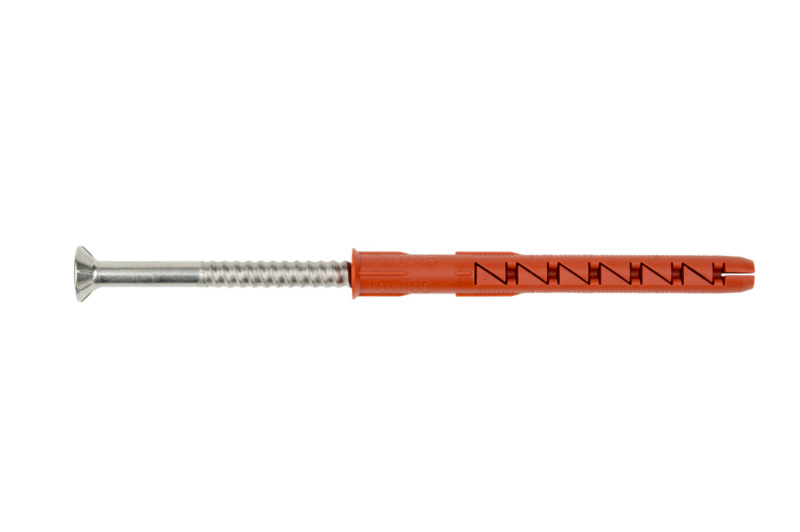

Plastic frame anchor W-UR 10 SymCon
Plastic frame anchor W-UR 10 SymCon
+374(0)10 349347, 349348
Tecnical Description
- Anchor diameter: 10 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Embedding depth (h nom1): 40 mm
- Drill hole depth (h 1.1): 50 mm
- Drill hole depth (h 1.2): 60 mm
- Drill hole depth (h 1.3): 80 mm
- Embedding depth (h nom2): 50 mm
- Embedding depth (h nom3): 70 mm
Anchor length (l)
Attachment height (t fix 1)
Attachment height (t fix 2)
Attachment height (t fix 3)
Code
Package / Quantity
Price (AMD)
Code: 5911010103
Tecnical Description
- Anchor length (l) 100 mm
- Attachment height (t fix 1) 60 mm
- Attachment height (t fix 2) 50 mm
- Attachment height (t fix 3) 30 mm
- Anchor diameter 10 mm
- Embedding depth (h nom1) 40 mm
- Embedding depth (h nom2) 50 mm
- Embedding depth (h nom3) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1.1) 50 mm
- Drill hole depth (h 1.2) 60 mm
- Drill hole depth (h 1.3) 80 mm
Code: 5911010104
Tecnical Description
- Anchor length (l) 115 mm
- Attachment height (t fix 1) 75 mm
- Attachment height (t fix 2) 65 mm
- Attachment height (t fix 3) 45 mm
- Anchor diameter 10 mm
- Embedding depth (h nom1) 40 mm
- Embedding depth (h nom2) 50 mm
- Embedding depth (h nom3) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1.1) 50 mm
- Drill hole depth (h 1.2) 60 mm
- Drill hole depth (h 1.3) 80 mm
Code: 5911010102
Tecnical Description
- Anchor length (l) 80 mm
- Attachment height (t fix 1) 40 mm
- Attachment height (t fix 2) 30 mm
- Attachment height (t fix 3) 10 mm
- Anchor diameter 10 mm
- Embedding depth (h nom1) 40 mm
- Embedding depth (h nom2) 50 mm
- Embedding depth (h nom3) 70 mm
- Nominal drill-bit diameter (d 0) 10 mm
- Drill hole depth (h 1.1) 50 mm
- Drill hole depth (h 1.2) 60 mm
- Drill hole depth (h 1.3) 80 mm
Almost no distortion of the wall plug body
- Low screw-in torque of the plug screw
- "Slight" spreading of the anchor
Reliable post-spreading characteristics
Enabled by geometry of the SymCon plug screw
Increased load introduction
Screwing in the SymCon screw results in optimum compression of the plastic of the plug screw (almost no back-cut)
Low assembly workload
Wall plug body and special screw are pre-assembled
Saves an additional U washer and prevents contact corrosion
Multiple insertion depths
- Concrete: 3 insertion depths (40, 50 and 70 mm)
- Masonry: 2 insertion depths (50 and 70 mm)
When anchoring in solid brick and solid sand-lime brick, we recommend performing pull-out tests due to differences in brick manufacturing
