Anchor technology Heavy-duty fixings Metal dowel, cracked aerated concrete Aerated concrete anchor

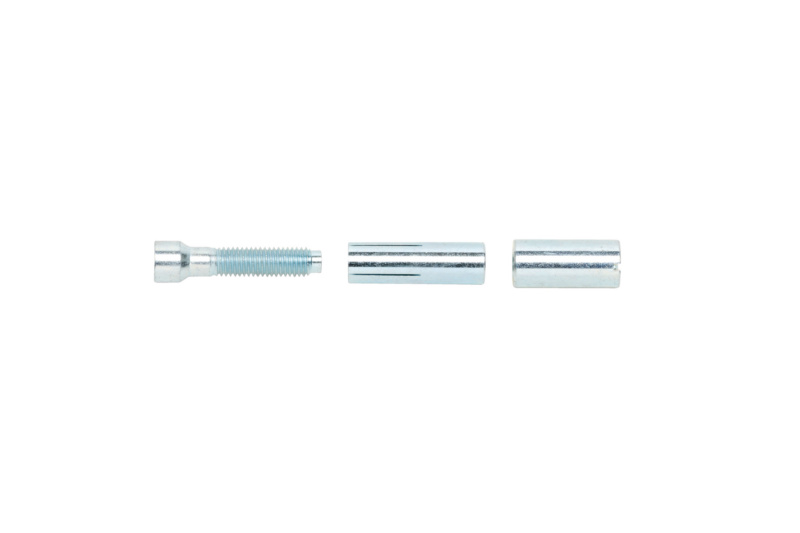

Aerated concrete anchor W-PA
Aerated concrete anchor W-PA
+374(0) 60 708807, +374(0) 10 349347
Tecnical Description
- Centre-to-centre distance (a): 100 mm
- Edge clearance (a r): 150 mm
- Minimum component thickness (d): 175 mm
Anchor diameter
Hole diameter in component (d Bau)
Tightening torque (T t)
Embedding depth (h s)
Code
Package / Quantity
Price (AMD)
Code: 0905720008
Tecnical Description
- Anchor diameter 8 mm
- Hole diameter in component (d Bau) 9 mm
- Tightening torque (T t) 5 Nm
- Embedding depth (h s) 70 mm
- Centre-to-centre distance (a) 100 mm
- Edge clearance (a r) 150 mm
- Minimum component thickness (d) 175 mm
Code: 0905720006
Tecnical Description
- Anchor diameter 6 mm
- Hole diameter in component (d Bau) 7 mm
- Tightening torque (T t) 3 Nm
- Embedding depth (h s) 70 mm
- Centre-to-centre distance (a) 100 mm
- Edge clearance (a r) 150 mm
- Minimum component thickness (d) 175 mm
Code: 0905720012
Tecnical Description
- Anchor diameter 12 mm
- Hole diameter in component (d Bau) 14 mm
- Tightening torque (T t) 8 Nm
- Embedding depth (h s) 80 mm
- Centre-to-centre distance (a) 100 mm
- Edge clearance (a r) 150 mm
- Minimum component thickness (d) 175 mm
Code: 0905720010
Tecnical Description
- Anchor diameter 10 mm
- Hole diameter in component (d Bau) 12 mm
- Tightening torque (T t) 8 Nm
- Embedding depth (h s) 80 mm
- Centre-to-centre distance (a) 100 mm
- Edge clearance (a r) 150 mm
- Minimum component thickness (d) 175 mm
- High permissible loads for maximum safety
- Quick anchor insertion u2014 minimal installation costs
- Immediate load-bearing capacity u2014 no waiting
- The positive locking anchoring is largely free of expansion pressure and is achieved without expensive and complicated undercutting tools.
Assembly with and without tools possible
Mechanical application with special tool for SDS mount also possible u2014 uses only the impact action of the hammer drill (min. 3 kg).
The anchors may only be fixed in unplastered, uncoated masonry walls
