Automotive parts Vehicle electrics Plug housing for car/commercial vehicle Plug housing, vehicle

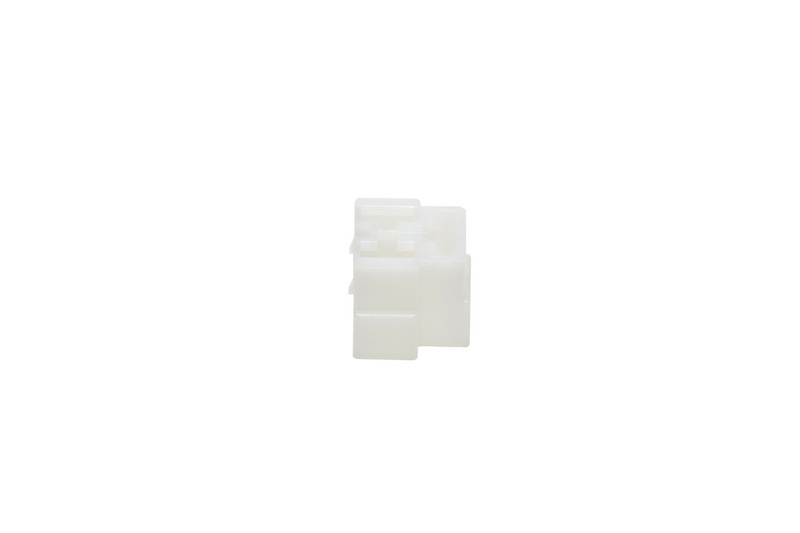

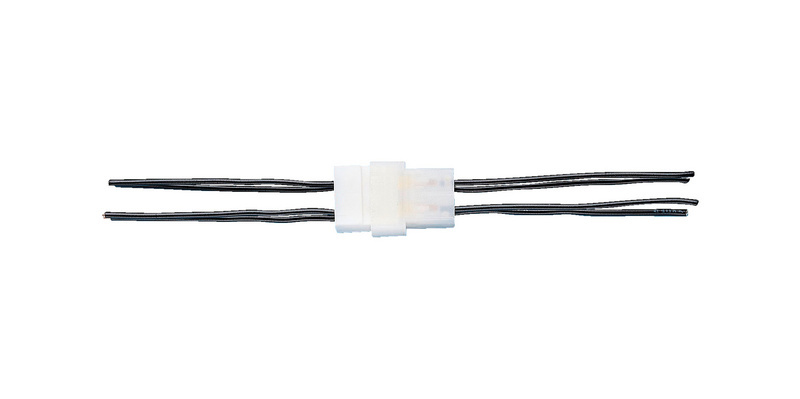

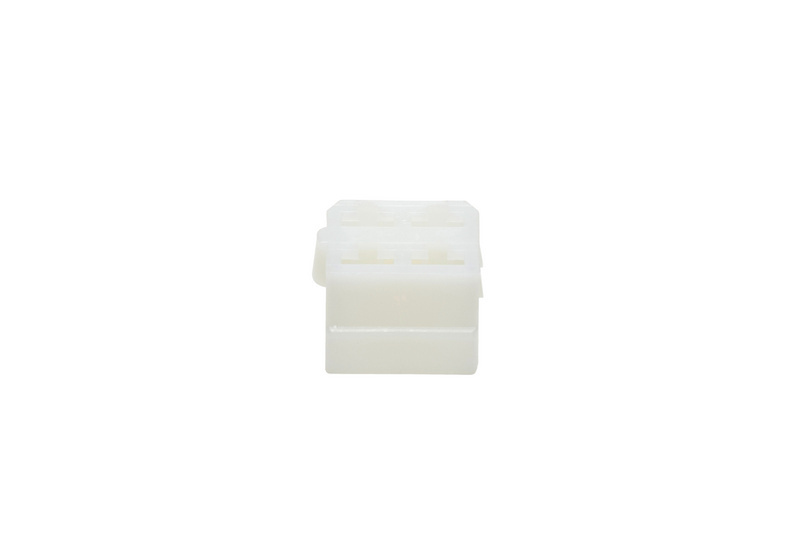

Multiple plug housing for push connector 6.3 x 0.8 mm
Multiple plug housing for push connector 6.3 x 0.8 mm
+374(0) 60 708807, +374(0) 10 349347
Tecnical Description
- Colour: Natural
- Material: Polyamide - PA
- Contact gauge: 6.3 mm
- Min./max. wire cross section: 0,5-6 mm²
- IP protection class: IP 20
- Max. nominal voltage: 250 V/AC/DC
- Min./max. temperature conditions: -40 to 80 °C
Number of electrical poles
Arrangement of contacts to each other
Max. current
Contact gauge
Code
Package / Quantity
Price (AMD)
Code: 055510011
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 1 PCS
- Arrangement of contacts to each other 90° angle
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510023
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 2 PCS
- Arrangement of contacts to each other At 90° angle to each other
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510021
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 2 PCS
- Arrangement of contacts to each other Both parallel
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510031
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 3 PCS
- Arrangement of contacts to each other Two parallel, one at 90° angle to each other
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510041
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 4 PCS
- Arrangement of contacts to each other Every two parallel
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510081
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 8 PCS
- Arrangement of contacts to each other Every two parallel
- Max. current 250 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510061
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 6 PCS
- Arrangement of contacts to each other Every two parallel
- Max. current 25 A
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
