Automotive parts Vehicle electrics Plug housing for car/commercial vehicle Plug housing, vehicle
Multiple plug housing for blade connector 6.3 x 0.8 mm
Multiple plug housing for blade connector 6.3 x 0.8 mm
+374(0) 60 708807, +374(0) 10 349347
Tecnical Description
- Colour: Natural
- Material: Polyamide - PA
- Contact gauge: 6.3 mm
- Max. current: 25 A
- Min./max. wire cross section: 0,5-6 mm²
- IP protection class: IP 20
- Max. nominal voltage: 250 V/AC/DC
- Min./max. temperature conditions: -40 to 80 °C
Number of electrical poles
Arrangement of contacts to each other
Contact gauge
Min./max. wire cross section
Code
Package / Quantity
Price (AMD)

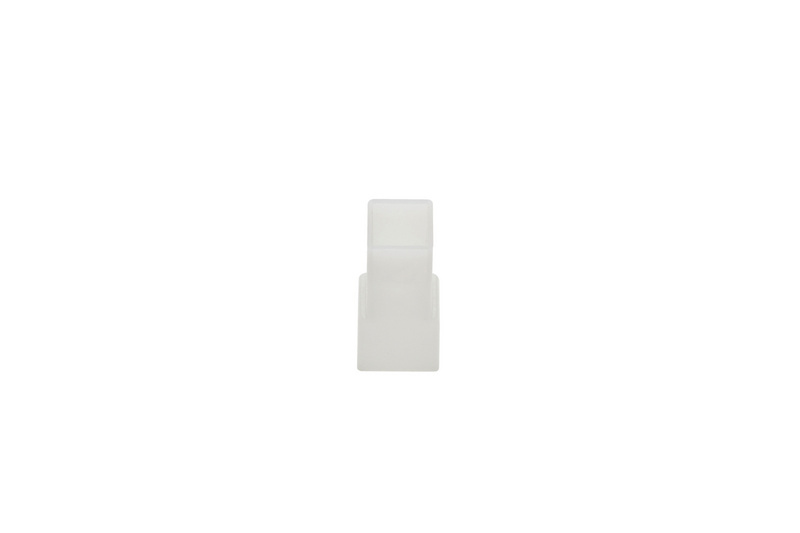

Code: 05551001
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 1 PCS
- Arrangement of contacts to each other 90° angle
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural

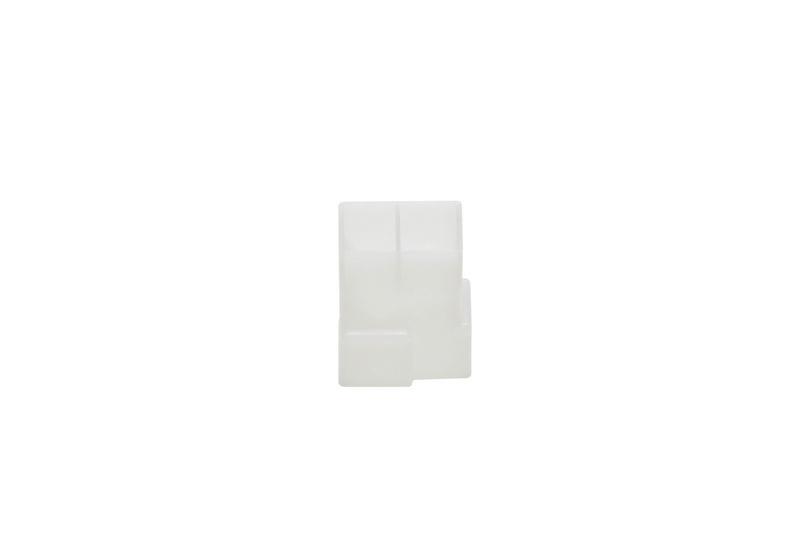

Code: 05551002
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 2 PCS
- Arrangement of contacts to each other Both parallel
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural

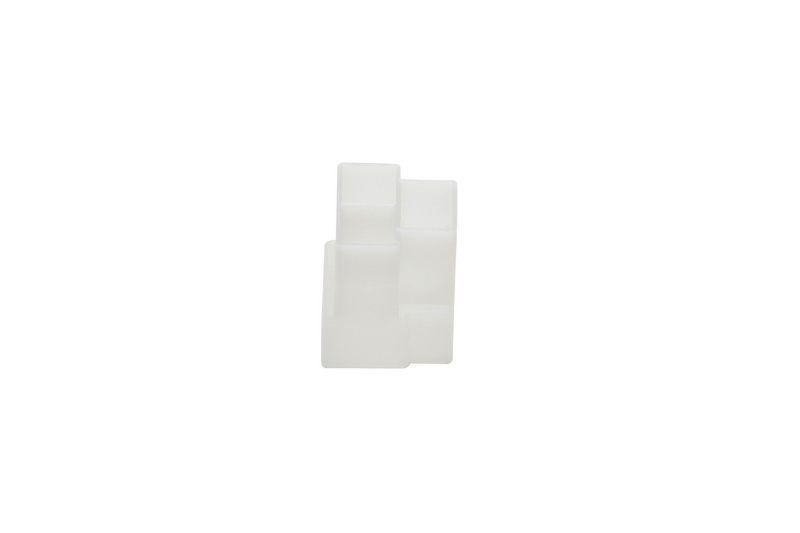

Code: 05551003
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 3 PCS
- Arrangement of contacts to each other Two parallel, one at 90° angle to each other
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 05551004
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 4 PCS
- Arrangement of contacts to each other Every two parallel
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural

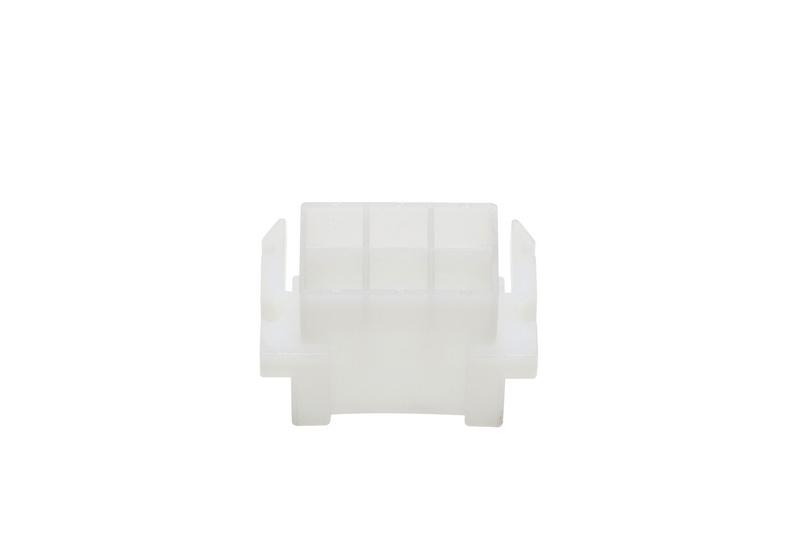

Code: 05551006
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 6 PCS
- Arrangement of contacts to each other Every two parallel
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 05551008
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 8 PCS
- Arrangement of contacts to each other Every two parallel
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
Code: 055510022
Product information
Catalogue page as PDF 1
Tecnical Description
- Number of electrical poles 2 PCS
- Arrangement of contacts to each other At 90° angle to each other
- Contact gauge 6.3 mm
- Min./max. wire cross section 0,5-6 mm²
- IP protection class IP 20
- Max. nominal voltage 250 V/AC/DC
- Max. current 25 A
- Min./max. temperature conditions -40 to 80 °C
- Material Polyamide - PA
- Colour Natural
