Anchor technology Heavy-duty fixings Metal dowel, cracked concrete Fixing bolt anchor, cracked concrete
Fixing bolt anchor, cracked concrete
5928508010
Related products
x
Fixing bolt anchor, cracked concrete
Code: 5928508010
Questions ? +374(0)10 349347, 349348
| 0x |
Please log in to see the price
|
Add to cart |
Material | Stainless steel A4, 1.4401 |
Metric anchor diameter | M8 |
Anchor length (l) | 75 mm |
Attachment height (t fix) | 10 mm |

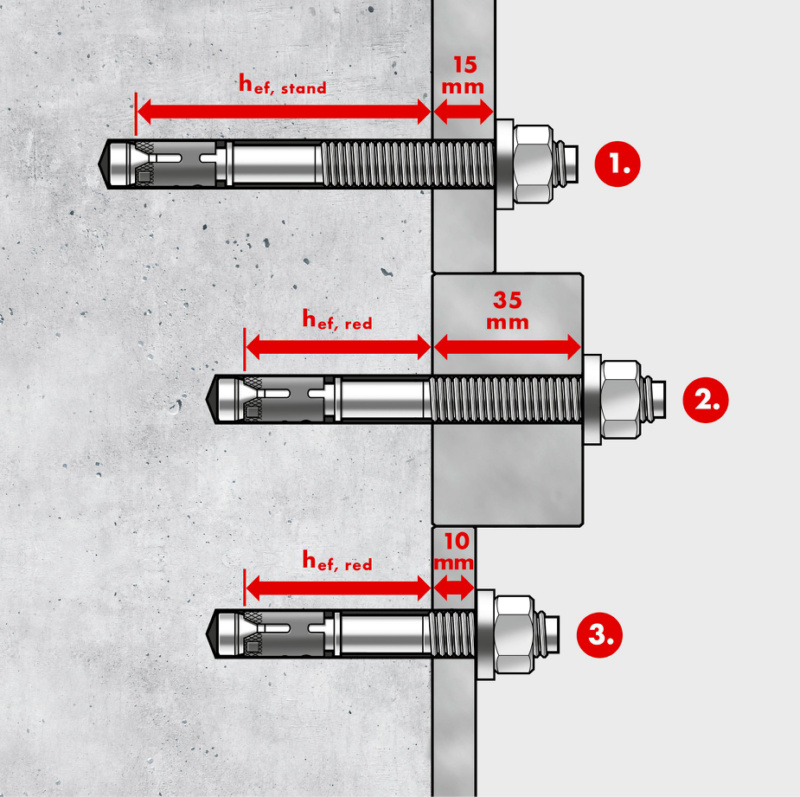

Max. attachment height reduced (t fix, red) | 21 mm |
Effective anchoring depth (h ef) | 46 mm |
Effective anchoring depth reduced (h ef, red) | 35 mm |
Nominal drill-bit diameter (d 0) | 8 mm |
Drill hole depth (h 1) | 60 mm |
Drill hole depth reduced (h 1, red) | 49 mm |
Torque during anchoring (T inst) | 20 Nm |
Width across flats | 13 mm |
Washer diameter | 24 mm |
Washer thickness | 2 mm |
Approval | ETA-99/0011 |
