0903480002 | Wurth.am

0x - +	Please log in to see the price	Add to cart

Specification

Individual attachment in cracked and non-cracked concrete and reinforcement attachment with subsequent mortaring

2-component reactive resin mortar, styrene-free pure epoxy
Individual attachment in cracked and non-cracked concrete: Anchor rod W-VD-A, conventional threaded rod with acceptance test certificate 3.1

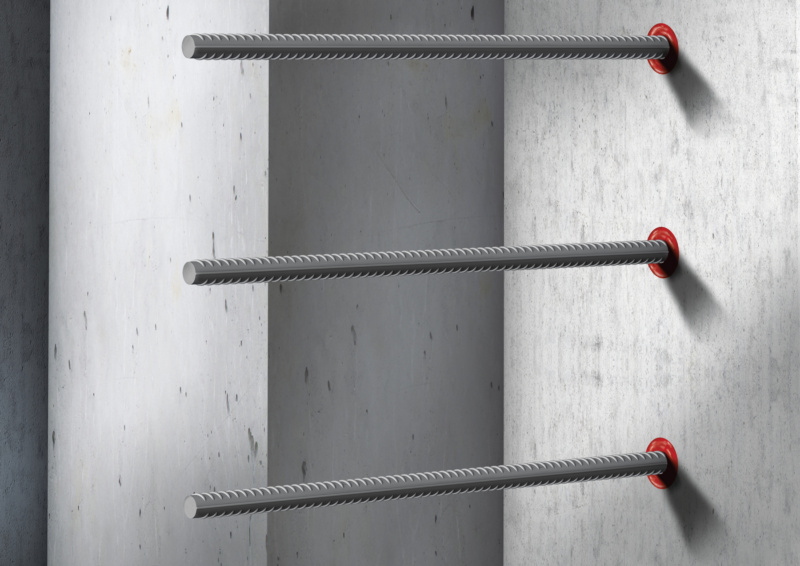

Reinforcement attachment with subsequent mortaring (REBAR)
Cartridges can be used up to expiration of the best before date by replacing the mixer nozzle or by being closed again with sealing cap.

Technical information

Container	Double cartridge
Contents	1400 ml
Suitable application gun	Pneumatic application gun 1400ml
Min./max. processing temperature /conditions	5 to 40 u00b0C / temperature in the anchorage ground during processing and hardening
Min./max. ambient temperature / Conditions	-40 to 72 u00b0C / after completely curing process
Temperature resistance, long-term temperatures max.	43 u00b0C
Temperature resistance, short-term temperatures max.	72 u00b0C
Shelf life from production/conditions	24 Month / cool and dry storage area, 5u00b0C to 25u00b0C
Approval	ETA-07/0313 DIBt Z-21.8-1834
Chemical basis	Pure-Epoxy, styrene free
Colour	Red

Required accessory:

Art.-no.: 0891015

Gun for chemical anchoring products WIT- PE 500

ANC-APPGUN-PN-(WIT-PE500)-M-PLA-1400ML

Pneumatic model

Suitable glove:

Nitrile chemical protective glove

Permeation level: 1

Cotton velour lining

Nitrile chemical protective glove, heavy-duty

Permeation level: 1

Long, heavy-duty design

Permeation is the process by which a chemical moves through the material of a protective glove on a molecular level. The time from the initial contact between the chemical and the glove to the permeation of the material is the breakthrough time.

Measured breakthrough time	Permeation level
< 10 min	0
u2265 10 min	1
u2265 30 min	2
u2265 60 min	3
u2265 120 min	4
u2265 240 min	5
u2265 480 min	6

Important information:

The information given is based on experience and laboratory conditions and is designed as a guide. However, the actual suitability of a glove depends on the individual conditions of its use and must be confirmed by an appropriate test under operational conditions. Given the variety of materials and chemicals used, the possibility of incompatibility or usage problems for the wearer cannot be excluded in individual cases. We would be happy to advise you about optimum solutions.
