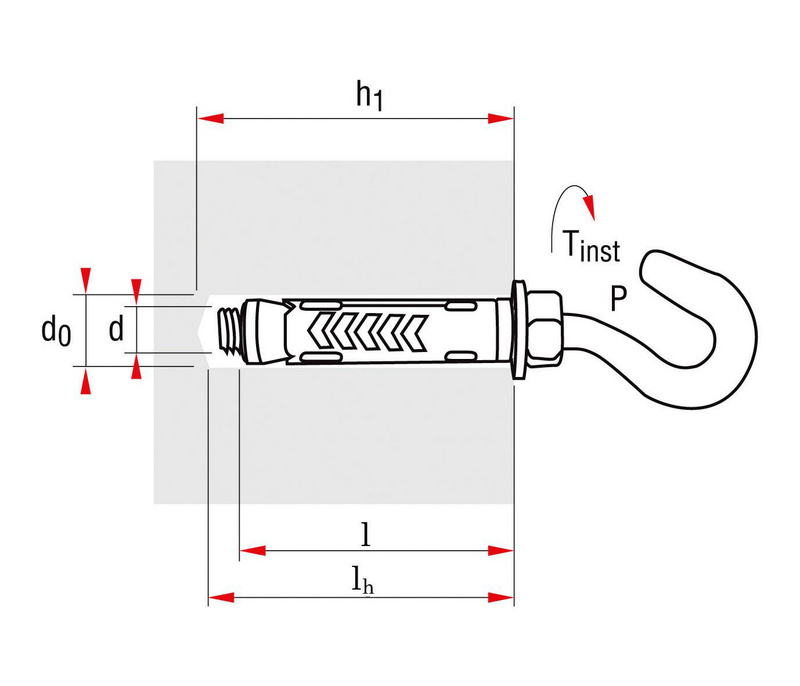

Anchor diameter

6 mm

Anchor length (l)

45 mm

Effective anchoring depth (h ef)

39.5 mm

Nominal drill-bit diameter (d 0)

10 mm

Min. centre-to-centre distance (s min)

65 mm

Min. edge clearance (c min)

45 mm

Minimum component thickness (h min)

135 mm

Drill hole depth (h 1)

55 mm

Through-hole in the component to be connected (d f)

7 mm

Torque during anchoring (T inst)

5 Nm

Drill cutting diameter (d cut)

10.45 mm

Centre-to-centre distance (s cr, N)

119 mm

Edge clearance (c cr, N)

60 mm

Screw length

55 mm

Version

With hook
